Technische Daten

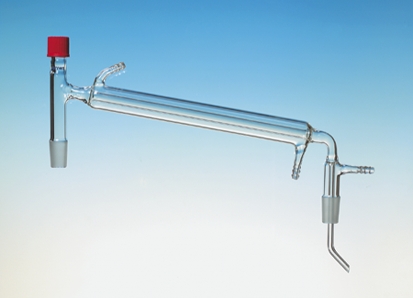

Liebigkühler mit Aufsatz, Borosilikat, NS 19/GL 18

Artikel-Nr.: 35870-01

Unknown

Funktion und Verwendung

Destillierbrücke mit zwei Normschliffkernen, Aufsatz mit Schraubverbindungskappe GL, angeschmolzenem Liebigkühler und abgewinkeltem Vakuumvorstoß mit Abtropfspritze.

Ausstattung und technische Daten

Normschliffkern senkrecht: NS 19/26
Aufsatz mit Schraubverbindungskappe GL 18/8 zur Halterung von Thermometern mit einem Außendurchmesser von 8 mm
Mantellänge des Liebigkühlers: 230 mm
Durchmesser der Oliven: 8 mm
Normschliffkern des Vakuumvorstoßes: NS 19/26
